Compatible with Hiseeu UltraHD 4K PoE Security Camera system(ASIN:B081JDB8RD) / 4K PoE Bullet/Dome Camera(B07ZKPMS8B) / 5MP PoE Security Camera System (B07HRKDD6B) Hikvision / Dahua / Reolink / SMONET / ZOSI / GW / Amcrest / Samsung / Zmodo PoE camera system and POE Switch etc.TP-Link / NETGEAR / Amazon eero / Linksys / ASUS / Medialink / Xiaomi WiFi Router etc.

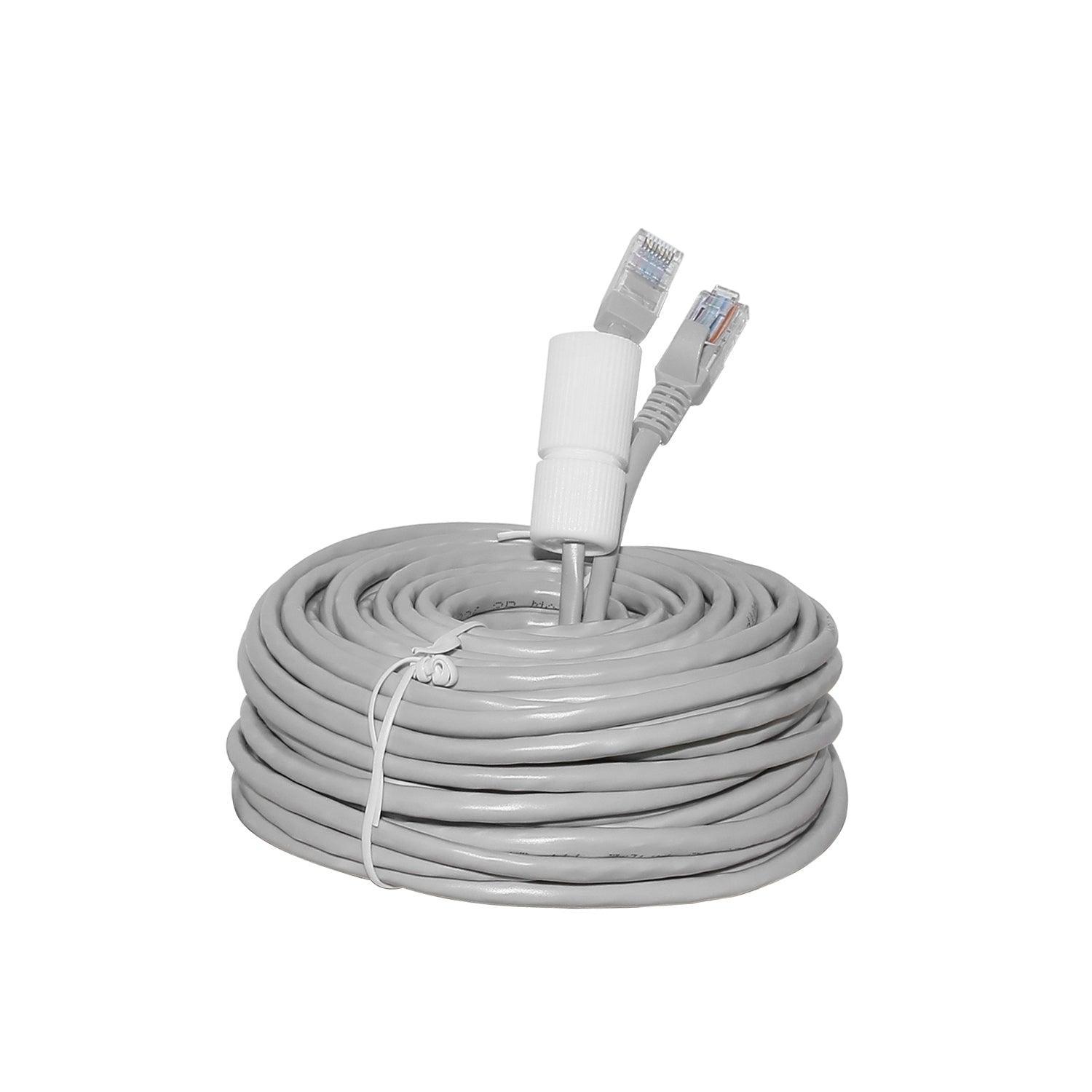

Product Type：U/UTP CAT5E-4P- PVC-CM
Test Basis：ISO/IEC11801、TIA-568-C.2、 YD/T1019
Core wire material：OFC(Oxygen-free copper)
Nominal diameter(mm)：0.500 （Deviation +0.005 Deviation -0.005）
Insulation Materials：High-density polyethylene
Insulated outer diameter：0.88±0.03mm
Sheath outer diameter：5.0±0.4mm
surface：Smooth and bright, full tightening
Print deviation and spacing：≤±0.5%，1m
Ambient temperature：-20℃ - 75℃
Electrical performance (20℃)：
1.0-100.0MHz Characteristic impedance (Ω) 100±15
1.0-100.0MHz Delay difference20℃(ns/100m) ≤45
DC Resistance 20℃(Ω/100m) max 9.5
DC resistance is not balanced (%)max 5.0
Mechanical properties of outer sheath：
Before aging tensile strength (Mpa)≥13.5，Elongation (%) ≥150
Aging conditions (℃×hrs) 100℃×24h×10d
After aging tensile strength (Mpa)≥12.5， Elongation (%) ≥125
cold-bending (-20±2℃×4hours) 8 times the cable diameter, no cracking

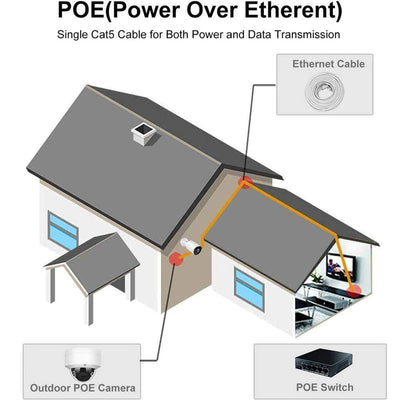

Power over Ethernet (POE) technology sends 10/100/1000 Mbps of data and 15W, 30W, 60W, and up to 90W of power budget to devices over Cat5e and Cat6 Ethernet cables for a maximum distance of 100m.
PoE technology relies on the IEEE 802.3af and 802.3at standards, which are set by the Institute of Electrical and Electronics Engineers and govern how networking equipment should operate in order to promote interoperability between devices.
PoE-capable devices can be power sourcing equipment (PSE), powered devices (PDs), or sometimes both. The device that transmits power is a PSE, while the device that is powered is a PD. Most PSEs are either network switches or PoE injectors intended for use with non-PoE switches.
Common examples of PDs include VoIP phones, wireless access points, and IP cameras.
|Resolution||8MP (3840 by 2160 Pixels)||8MP (3840 by 2160 Pixels)||8MP (3840 by 2160 Pixels)|
|Night Vision||Automatic switching （131Ft）||Automatic switching （131Ft）||Automatic switching （131Ft）|
|Power Supply||Input:100-240VAC 50/60GHz,Output:DC 52V 1.8A||Power over Ethernet / DC 12A 1A||Power over Ethernet / DC 12A 1A|
